Please use the drop-down menus to select the Super-PID options to suit your Router and CNC setup. All items will display in a new window showing the shopping cart. With checkout via PayPal or secure credit card ordering. Please note: PayPal requires 'cookies on'. All prices are in $USD.
Any questions about ordering or other payment options;
email us at SuperPID@VHiPe.com
|
|
Super-PID is made here in Australia. We airmail direct to every country!
Covid-19 Shipping Delays - last updated 23rd May 2022!
We are still in business and have Super-PID units ready to ship, they only require customisation to your order and final testing before shipment.
Delivery time into the USA is currently about 12 to 28 business days for standard Online Tracking. EMS Express is the fastest delivery about 8 to 16 business days. However, in some areas Covid related impacts may delay transit time.
Australia Post have advised current updates to
international delivery times.
Every order includes free shipping upgrade to Online Tracking. EMS Express can be added to your order during checkout.
|
Super-PID v2 Closed Loop Router Speed Controller for AC Routers
|
Every Super-PID is fully assembled and thorougly tested before shipping. Each Super-PID v2 order includes;
LCD Display, gold anodised heatsink, PCB standoffs, firmware IC.
Spindle infrared RPM sensor with 2.5 metres cable connected and tested (custom cable length can be ordered below).
Manual Speed control pot (1/4" shaft) connected and tested
(Note!: a knob is not included, knobs are available for purchase below).
Polycarbonate tube to protect the RPM sensor inside router must be securely mounted with silastic/silicone. We recommend also securing the RPM sensor cable into place with silicone to protect against vibration movement.
Note!: For safety every Super-PID must be installed into an enclosure (enclosures are available for purchase below).
Download
SuperPID-v2 Instructions refer to
Tech Support.
Super-PID Closed Loop AC Router Speed Controller is Made In Australia.
|
|
Super-PID optional accessories below.
|
Extra Wiring Length for the included RPM Sensor Lead
|
The included RPM Sensor Lead is 2.5 metres (8.2 feet).
For larger CNC machines or remote mounting of Super-PID order a longer cable lead to suit your specific application.
|
Extra wiring length for included RPM Sensor. Select required cable length.
Included RPM Sensor Lead is 2.5m (8.2'). Select the total wiring cable length to suit your larger CNC machine or for remote mounting of Super-PID controller.
|
|
|
Temperature Sensor Lead and Additional RPM Sensor Lead
|
Tested and ready to use sensor leads to suit your CNC machine setup or your specific application.
|
Temperature Sensor Lead. Select required cable wiring length.
Connects to Super-PID and displays on LCD the temperature of the router motor, or CNC hardware, or Super-PID enclosure, etc. Anything you wish to temperature monitor.
|
|
|
Additional/Second RPM Sensor Lead. Select required cable wiring length.
For a second router, or as a backup RPM Sensor Lead. Fully tested ready to use.
|
|
A larger diameter knob makes it is easier to set the RPM speed on Super-PID manual speed control pot.
|
Knob - PVC White 23mm diameter.
With grub screw mounting onto 6mm (1/4") shaft potentiometer.
|
|
|
Knob - PVC Black 24mm diameter.
With grub screw mounting onto 6mm (1/4") shaft potentiometer.
|
|
|

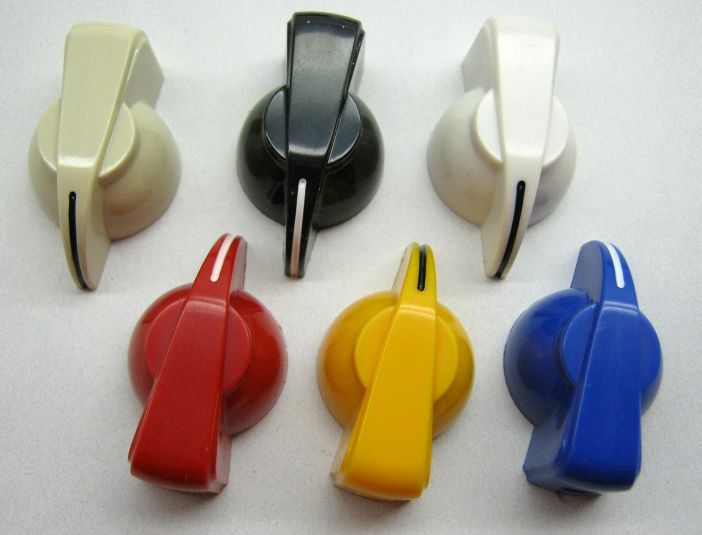

Knob - Pointer Head PVC - Various colours available.
With grub screw mounting onto 6mm (1/4") shaft potentiometer.
|
|
|
|
Knob - PVC Black 35mm diameter.
With grub screw mounting onto 6mm (1/4") shaft potentiometer.
|
|
|
Knob - PVC Black 33mm diameter, with Aluminium Cap.
With grub screw mounting onto 6mm (1/4") shaft potentiometer.
|
|
|
Knob - Largest diameter. PVC Black 45mm diameter, with Aluminium Cap.
Our largest diameter Knob! With two grub screw mountings onto 6mm (1/4") shaft potentiometer.
|
|
|
Knob - Solid Aluminium Clear Anodised 30mm diameter.
With grub screw mounting onto 6mm (1/4") shaft potentiometer.
|
|
|
Knob - Solid Aluminium Black Anodised 30mm diameter.
With grub screw mounting onto 6mm (1/4") shaft potentiometer.
|
|

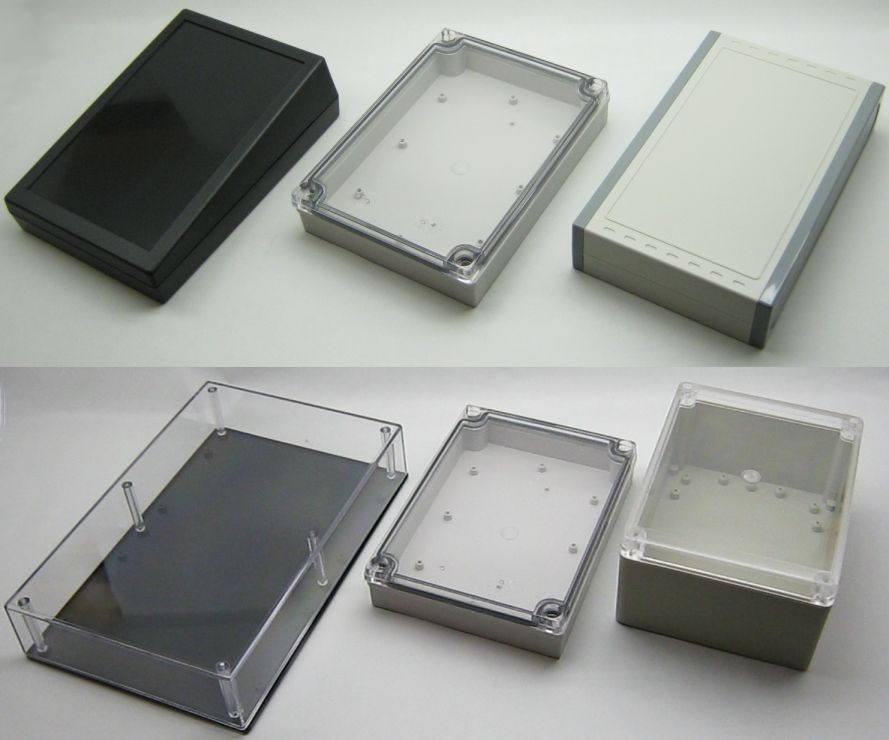

For safety every Super-PID must be installed into an insulated enclosure. Visit the
User Gallery for enclosure ideas.
|
Enclosure - 200H x 120W x 40D mm (7.87 x 4.72 x 1.57 inches)
ABS two-tone grey.
|
|
|
|
Enclosure - 241H x 161W x 48D mm (9.50 x 6.34 x 1.9 inch). Clear lid, black gloss base.
Polycarbonate clear lid and clear sides, black gloss polyester base.
Made in USA.
|
|
|
Enclosure - 250H x 175W x 75D mm (9.84 x 6.89 x 2.95 inches) - Clear lid.
Clear acrylic cover, grey base. IP65 moisture/dust seal.
Optional PCB mounting plate at base of enclosure.
|
|
|
Enclosure - 290H x 190W x 100D mm (11.42 x 7.48 x 3.94 inches) - Clear lid.
Clear acrylic cover, grey base. IP65 moisture/dust seal. Includes (4 qty) mounting brackets.
Optional internal base PCB mounting plate. Optional internal top PCB mounting swing plate and
support frame - includes support frame, top plate, metal hinges, all screws and quick release bolts.
|
|
|
|
Enclosure - 390H x 290W x 100D mm (15.35 x 11.42 x 3.94 inches) - Clear lid.
Clear acrylic cover, grey base. IP65 moisture/dust seal.
Includes (4 qty) mounting brackets. Optional internal base PCB mounting plate. Optional internal top PCB mounting swing plate and
support frame - includes support frame, top plate, metal hinges, all screws and quick release bolts.
|
|
ON/OFF, "change-over" switch for selecting manual pot or PC speed control. See example
wiring diagram
switch options.
|
Toggle switch Miniature - DPDT 3Amp @ 240V AC or 6Amp @ 110v AC.
Chassis mount vertical action toggle. Panel hole 6mm diameter. Two way switch.
|
|
|
Toggle Switch Miniature On/Off/On - DPDT 3A @ 240vAC or 6A @ 110vAC.
Chassis mount vertical action toggle. Panel hole 6mm diameter. Two way switch with centre OFF.
|
|
|
Toggle with metal On/Off tag - SPST 2A @ 240v AC or 4A @ 110v AC.
Chassis mount vertical action toggle. Panel hole 12mm diameter. Two way switch.
|
|
|
Heavy Duty Toggle metal ON/ON tag - DPDT 3A @ 240v AC or 5A @ 110v AC.
Chassis mount vertical action toggle. Panel hole 12mm diameter. Two way switch.
|
|
|
Toggle with metal On/Off tag - DPDT 2A @ 240v AC or 4A @ 110v AC.
Chassis mount vertical action toggle. Panel hole 12mm diameter. Two way switch.
|
|
|
|
Heavy Duty Toggle metal On/Off tag - DPDT 3A @ 240v AC or 6A @ 110v AC.
Chassis mount vertical action toggle. Panel hole 12mm diameter. Two way switch.
|
|
|
Extra Heavy Duty Toggle On/Off/On tag - DPDT 10A @ 240v AC or 20A @ 110v AC.
Chassis mount vertical action toggle. Panel hole 12mm diameter. Two way switch with centre OFF.
|
|
|
Cable glands and grommets
|
To protect wiring/cables through the enclosure wall.
|
Cable gland small PG7 - Grey plastic. Rubber clamping ring, IP68 moisture seal.
Cable hole 3-6.5mm (1/4"). Panel hole 12.5mm diameter. External depth from chassis 26mm.
|
|
|
Cable gland large PG13.5 - Grey plastic. Rubber clamping ring, IP68 moisture seal.
Cable hole 6-12mm (1/2"). Panel hole 20mm diameter. External depth from chassis 35mm.
|
|
|
Pair/Set - Small Grey Cable Gland PG7 (plus) Large Grey Cable Gland PG13.5.
Combined from above, with a small discount.
|
|
|
Cable gland small PG7 - Black plastic. Rubber clamping ring, IP68 moisture seal.
Cable hole 3-6.5mm (1/4"). Panel hole 12.5mm diameter. External depth from chassis 26mm.
|
|
|
Cable gland large PG13.5 - Black plastic. Rubber clamping ring, IP68 moisture seal.
Cable hole 6-12mm (1/2"). Panel hole 20mm diameter. External depth from chassis 35mm.
|
|
|
Pair/Set - Small Black Cable Gland PG7 (plus) Large Black Cable Gland PG13.5.
Combined from above, with a small discount.
|
|
|
Grommet set Black - 2x small grommets (plus) 2x large grommets
Cable hole small 4.5mm, large 9.5mm. Panel hole small 8mm, large 12.7mm. Chassis wall thickness 1.5mm.
|
|
For easy connect-disconnect of RPM Sensor wiring or Temperature Sensor wiring.
|
Jack Plug Inline - Stereo, Insulated Black Plastic - 6.35mm (1/4").
Inline cable plug.
|
|
|
Jack Socket Chassis Mount - Inline Stereo, Insulated Black Plastic - 6.35mm (1/4").
Panel hole 11mm diameter.
|
|
|
Pair/Set - Jack Plug Inline (plus) Jack Socket Chassis Mount.
Combined from above, with a small discount.
|
|
|
Jack Socket Inline - Stereo, Insulated Black Plastic - 6.35mm (1/4").
Inline cable socket.
|
|
|
Pair/Set - Jack Plug Inline (plus) Jack Socket Inline.
Combined from above, with a small discount.
|
|
Fan cooling of Super-PID is recommended for some applications. Also for small, sealed enclosures.
|
5volt DC Fan - 40x40x10mm - 5V, 0.8W, 5500rpm, 6.11cfm, 28dB
Ceramic bearings rated for 6x lifespan of standard bearings.
|
|
|
5volt DC Fan - 40x40x20mm - 5V, 1.0W, 5500rpm, 7.77cfm, 21dB
Ceramic bearings rated for 6x lifespan of standard bearings.
|
|
Extras.
|
Potentiometer - 24mm Single rotary pot 10k ohm, linear taper, round shaft.
Note: Every Super-PID already includes this pot!
|
|
|
Polycarbonate tube - 55mm long 9mm O.D. Protects the RPM Sensor inside router.
Note: Every Super-PID includes one tube! Not included with any Temperature Sensor or Additional RPM Sensor Lead. Secure with strong silicone/silastic, secure the cable too!!
|
|
